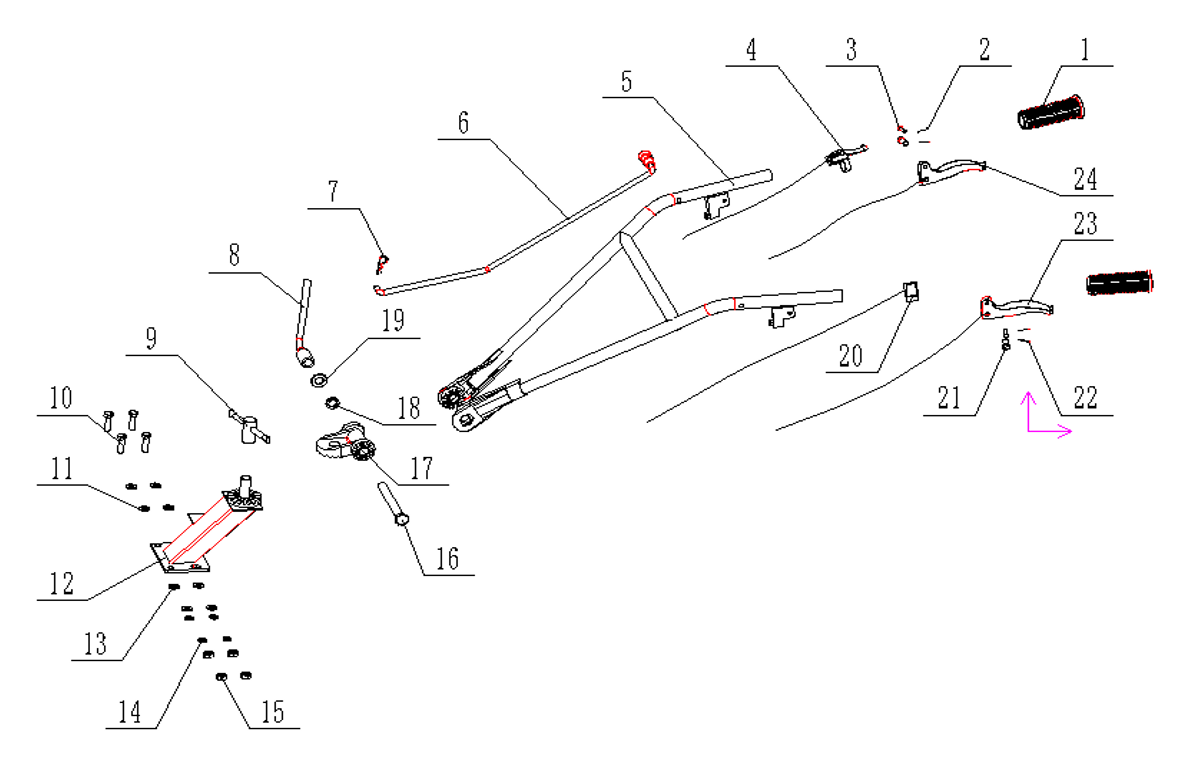

SPARE PARTS - 170F GEARBOX - HANDLE SYSTEM
Explore our comprehensive range of spare parts - 170f gearbox - handle system designed for efficiency and reliability.
3 - Pin shaft_7*22 B Type (G-105FQSD-A)
Pin shaft_7*22 B Type (G-105FQSD-A)
HSN: 84329010
12 - Armrest seat (G-105FQSD-A)
Armrest seat (G-105FQSD-A)
HSN: 84329010
16 - Hexagon head bolt_M16_150_8.8 (G-105FQSD-A)
Hexagon head bolt_M16_150_8.8 (G-105FQSD-A)
HSN: 84329010
18 - Washer_17*30*3 (G-105FQSD-A)
Washer_17*30*3 (G-105FQSD-A)
HSN: 84329010
23 - Clutch handle (G-105FQSD-A)
Clutch handle (G-105FQSD-A)
HSN: 84329010
2 - Split pin_φ1*20 (G-105FQSD-A)
Split pin_φ1*20 (G-105FQSD-A)
HSN: 84329010
4 - Throttle switch assembly_L=1300mm (G-105FQSD-A)
Throttle switch assembly_L=1300mm (G-105FQSD-A)
HSN: 84329010
7 - R pin_2*38 (G-105FQSD-A)
R pin_2*38 (G-105FQSD-A)
HSN: 84329010
11 - Washer_10.5*20*2 (G-105FQSD-A)
Washer_10.5*20*2 (G-105FQSD-A)
HSN: 84329010
- Rubber washer (G-105FQSD-A)
Rubber washer (G-105FQSD-A)
HSN: 84329010
13 - Washer_10.5*20*2 (G-105FQSD-A)
Washer_10.5*20*2 (G-105FQSD-A)
HSN: 84329010
14 - Spring washer_φ10 (G-105FQSD-A)
Spring washer_φ10 (G-105FQSD-A)
HSN: 84329010
15 - Hex nuts_M10_8 (G-105FQSD-A)
Hex nuts_M10_8 (G-105FQSD-A)
HSN: 84329010
17 - Handle Join (G-105FQSD-A)
Handle Join (G-105FQSD-A)
HSN: 84329010
- Clutch wire_L=835mm (G-105FQSD-A)
Clutch wire_L=835mm (G-105FQSD-A)
HSN: 84329010
24 - Reverse handle (G-105FQSD-A)
Reverse handle (G-105FQSD-A)
HSN: 84329010
1 - Handle tube (G-105FQSD-A)
Handle tube (G-105FQSD-A)
HSN: 84329010
5 - Handle tube (G-105FQSD-A)
Handle tube (G-105FQSD-A)
HSN: 84329010
6 - Handle tube (G-105FQSD-A)
Handle tube (G-105FQSD-A)
HSN: 84329010
19 - Spring washer_φ16 (G-105FQSD-A)
Spring washer_φ16 (G-105FQSD-A)
HSN: 84329010
22 - Split pin_φ1*20 (G-105FQSD-A)
Split pin_φ1*20 (G-105FQSD-A)
HSN: 84329010
- Lock (G-105FQSD-A)
Lock (G-105FQSD-A)
HSN: 84329010
- Reverse gear wire_L=950mm (G-105FQSD-A)
Reverse gear wire_L=950mm (G-105FQSD-A)
HSN: 84329010
8 - Lock handle_up & down (G-105FQSD-A)
Lock handle_up & down (G-105FQSD-A)
HSN: 84329010
9 - Lock handle_left & right (G-105FQSD-A)
Lock handle_left & right (G-105FQSD-A)
HSN: 84329010
10 - Hexagon head bolts. Full thread_M10 _35_8.8 (G-105FQSD-A)
Hexagon head bolts. Full thread_M10 _35_8.8 (G-105FQSD-A)
HSN: 84329010
20 - Flameout switch assembly_L=1200mm (G-105FQSD-A)
Flameout switch assembly_L=1200mm (G-105FQSD-A)
HSN: 84329010
21 - Pin shaft_10*22 B Type (G-105FQSD-A)
Pin shaft_10*22 B Type (G-105FQSD-A)
HSN: 84329010
